PRISMAsatellite Műszaki adatok

SUBMISSION

Multi channel intput

LPD, Raw socket, Hot Folder, FTP, SAP ( PrintKey), JDF/JMF, command line

Data

Line data, PS, PCL, XML, CSV ...

DELIVERY

Multi channel output

Printer, eMail, Fax, Archive, Output folder

Data

Postscript, PCL, PDF

Multiple output

Multiple outputs per incoming jobs

Accounting

One record per output

SCHEDULING

Control

Input channel, queue, device and job managenent

Job scheduling

FIFO, Priority, custom

Load balancing

Round robin, bestchoice printing

Redirection

job, device

PROCESSING

Recognition

Job properties, metadata

Routing

Rule based

Processings

split, data conversion, workflow, multiple processings per incoming job

Eform Applications

Inspire (GMC), PlanetPress(Objectif Lune), Transform (BottomLine)
PDF/PCL-FormMerge ( )

Sort and merge

Job store

MONITORING

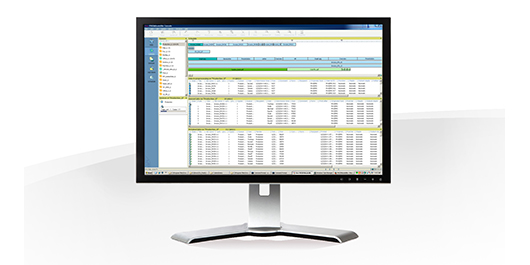

Console

Native, remote

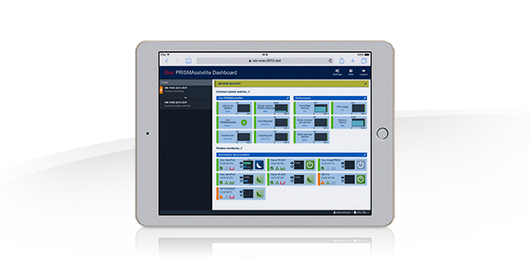

Dashboard

Monitor one or more systems running PRISMAsatellite

Monitoring agent

Take automatic action on job error

Job tracking agent

Track modification of job status

SNMP agent

Report about input channel,queue and device status

MINIMUM SYSTEM REQUIREMENTS

Processor

Intel quad core, hyper threading - maximum 4 CPUs

System Memory

8GB DDR3 or more

Hard Drive

SSD SATA3 or equivalent. 30 GB to install the software and run production; additional space required for customer data

Ethernet Capability

100/1000 Mb/sec

Display

LCD Monitor

Input Devices

Keyboard and Mouse

SOFTWARE REQUIREMENTS

Operating System

Windows  Server 2003 SP2 Standard Edition   (32-bit and x64) , 2008 Standard Edition  (32-bit and x64), Windows Server 2012 R2

Virtualisation

Vmware ESX 4, Vmware ESX 5

Data base

MS SQL server Express 2008 R2,MS SQL server Express 2012 R2

Felelősség kizárása

All specifications subject to change without notice.

[1] , PRISMAsatellite are registered trademarks of -Technologies.

[2] Adobe®, Adobe® PDF and Postscript® 3™ are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

[3] Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

All other trademarks are the property of their respective owners.
