TECHNOLOGY
Variants

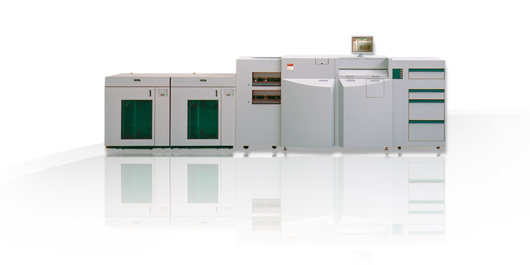

VarioPrint 5110 up to 112 ppm
VarioPrint 5140 up to 138 ppm
VarioPrint 5160 up to 162 ppm
Operating Principle
Electrophotography
LEDplus technology
Fusing Method
Heat-pressure fusing
Print Field Resolution
MRM advanced (Multi Resolution Mode)
240/300 /600 dpi with automated resolution switching
PRODUCTION
Cutsheet Papers
Standard Laser copy paper
Suitable perforated papers
Preprinted papers
Carbonless paper
Coated paper
Adhesive paper
Tabs
Paper Weight
A4 60 - 200 g/m² (16-54 lbs)
A3 60 - 200 g/m² (16-54 lbs)
Tabs 120 - 200 g/m² (32-54 lbs)
Paper Formats
A4, A4+, A3, A3+, B4, Letter, Legal, Ledger,
variable formats between 203 x 210 mm to
432 x 310 mm (first value means paper
length in feed direction)
Paper Feed
5,200 sheets in 4 input trays
(2 x 2,000 and 2 x 600 sheets of 80 g/m²)
Paper Stacking
2,400 sheets in 2 output traysc
(1,200 sheets each), in sequence stacking
face down or face up, sample tray holding
50 sheets (80 g/m²)
Tray Selection
Automated or manual control of input trays. Load while printing
Job Separation
Via job controlled offsetting or colored separator sheets
Print Modes
Black & white
MICR optional (also in combination with standard black toner and
CustomTone)
CustomTone optional
Support Functions
Fully configurable page functionality
PHYSICAL
Electrical
Voltage 400/230 V; ±10% 208 V; ±10%
Frequency 50 Hz ±1 Hz 60 Hz ±1 Hz
Safety fuses 4 x 25 A 3 x 25 A
Power Consumption (Standby in brackets)
50 Hz 60 Hz
Real Pw 5.1 kW ± 10% 5.1 kW ± 10%
(1.4 kW ± 10%) (1.4 kW ± 10%)
Apparent Ps 5.4 kVA ± 10% 5.4 kVA ± 10%
(1.8 kVA ± 10%) (1.8 kVA ± 10%)
Heat emission 18,360 kJ/h (5.700 kJ/h)
Operating Noise (Standby in brackets)
Max. 66 dB (A) (Max. 57 dB (A))
Environmental
Temperature
Recom. Range 20°C - 26°C
Limit range 10°C - 32°C
Rel. humidity
Recom. Range 30% - 50%
Limit range 10% - 80%
Dimensions
Height 1.433 mm (without monitor)
Width 980 mm
Length 3.255 mm
Weight
approx. 1.434 kg (approx.3,162 lbs)
CONNECTIVITY
Native Printer Codes
IPDS, PCL5e-
Interfaces
IBM /370 (Bus and Tag)
IBM /390 (ESCON)
SCSI
Ethernet Gigabyte (Copper) incl. 10 / 100 BT
Ethernet Gigabyte (Optic)
Connects to
PRISMA production
AFP/IPDS, PDF, TIFF, Postscript, LCDS (Metacode)
Ocè PRISMA office
PCL 5e-
Others
BS2000, PSF/VSE, PSF/VM, OS/390 (MVS) and z/OS, OS/400 (PSF/400),
Infoprint Manager for AIX, Infoprint Manager for Windows NT
